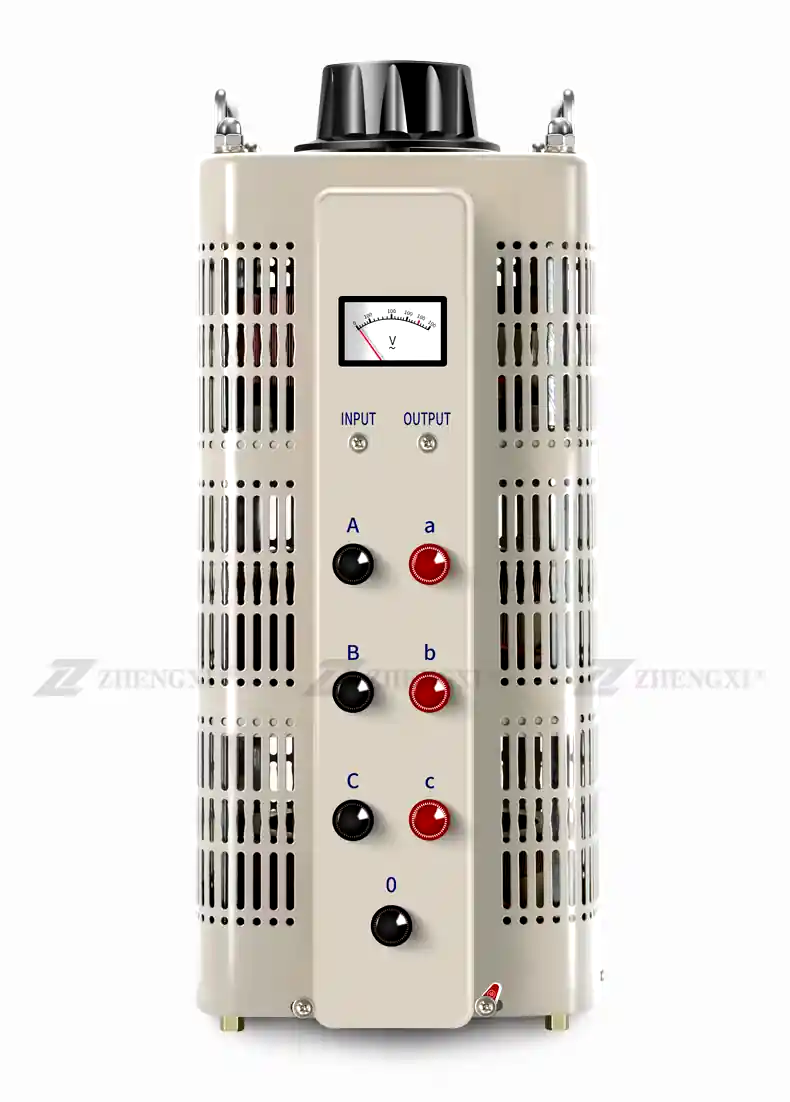

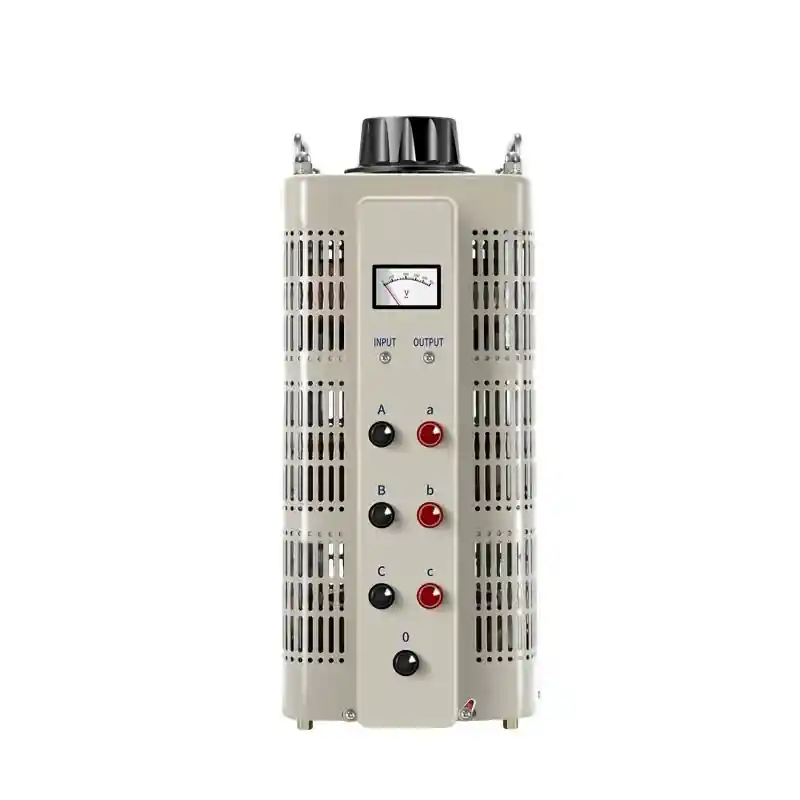

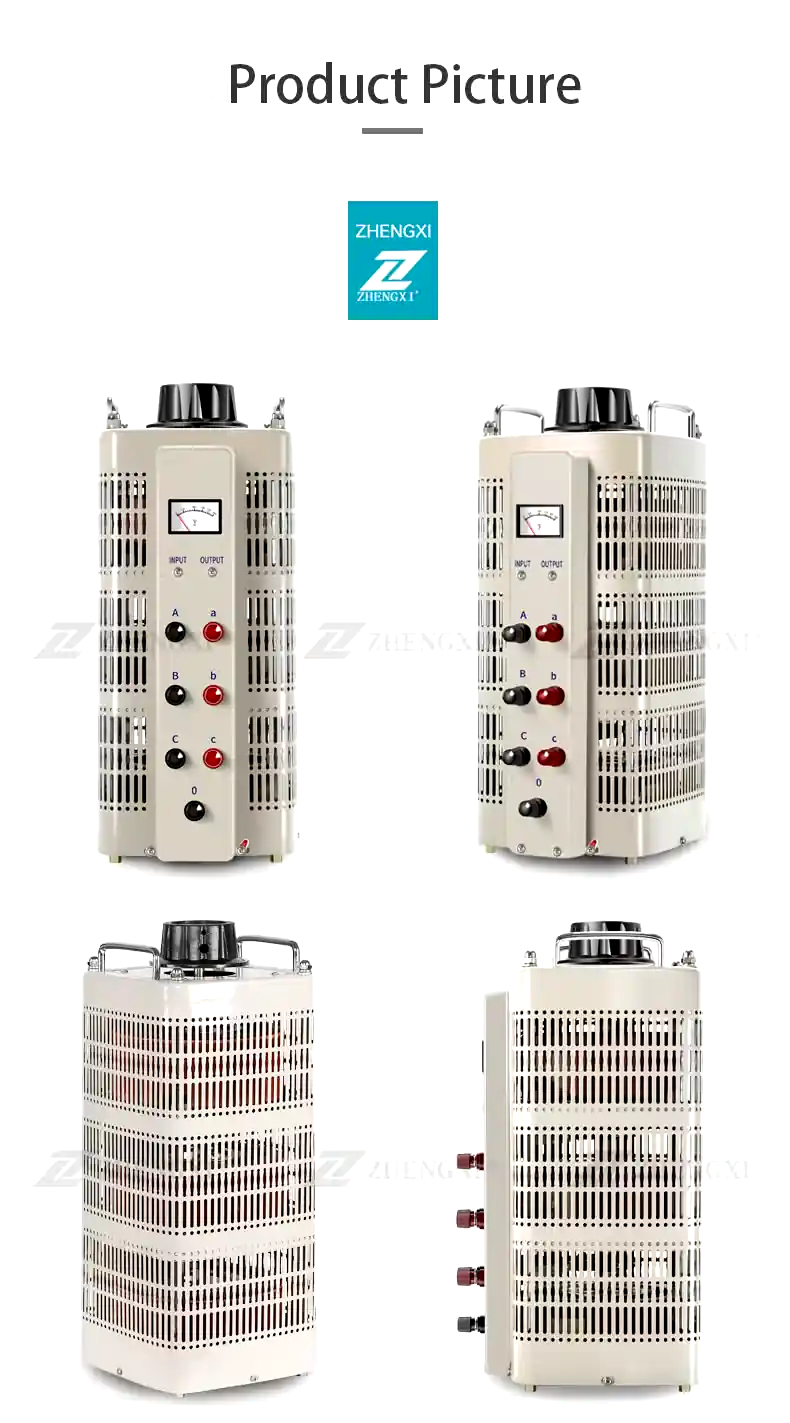

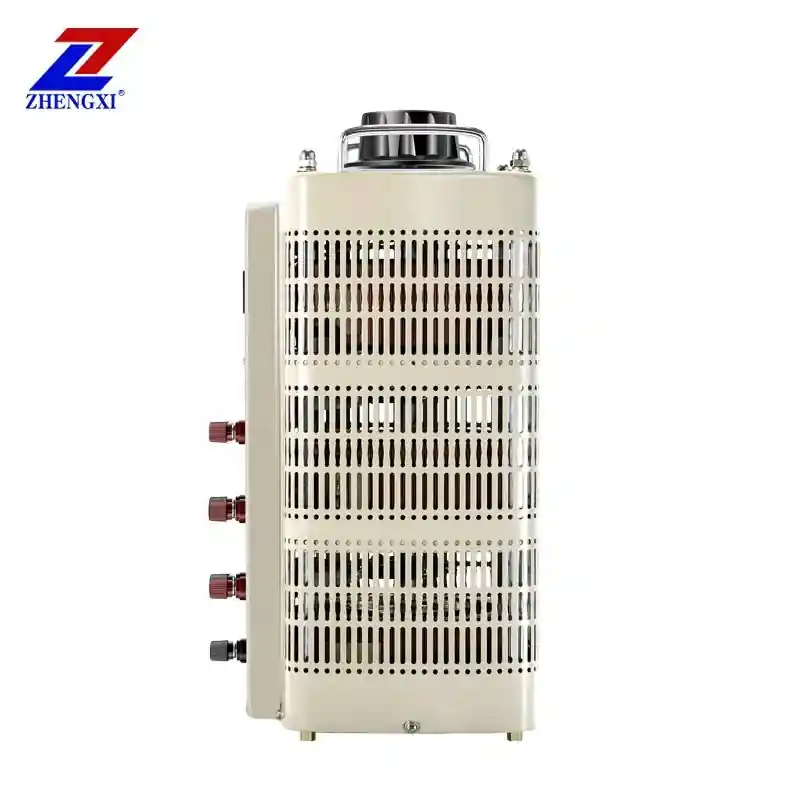

Voltage Regulator Transformer Autocoupling Three Phase 0.6-30kVA Manual Adjustment AC

Voltage Regulator Transformer Autocoupling Three Phase 0.6-30kVA Manual Adjustment AC

Model: TSGC2
pirce:$800.00
MOQ (Minimum Order Quantity): 1 set/piece
OEM and ODM Services: Available
Brand: PINEELE
Packaging: custodia in compensato
Payment Methods: T/T, L/C, Western Union, Carta di credito

Overview

The TSGC2 Series Transformer is a high-performance autotransformer designed for precise voltage regulation in three-phase power systems. Featuring a continuously adjustable voltage range of 0-430V, this transformer is ideal for industrial, commercial, and residential applications where stable and reliable power output is required.

Engineered with a shell-type core and toroidal winding, the TSGC2 Series ensures high efficiency (95%), low waveform distortion, and long-term durability. This product is widely used in chemical industries, metallurgy, instrumentation, manufacturing, public utilities, and household appliances. With its compact and innovative design, the TSGC2 model comes in a quadrangular shape, while the TSGC2J model features a hexagonal structure.

AttributeDetails
Model NO.TSGC2
CoreShell-type Transformer
Cooling MethodNatural Cooling
Winding TypeSeparated Winding Transformer
CertificationISO9001, CE
UsageThree Phase Transformer
Frequency CharacteristicsLow Frequency
Shape of CoreRing
BrandZhengxi
Input Voltage380VAC
Frequency50Hz/60Hz
Selling UnitsSingle Item
Output Voltage0-430VAC (Customizable)
UseSVC
Single Gross Weight60.000kg
Single Package Size40X40X40cm
OEM/ODMYes
Efficiency95%
Transport PackageExport Standard Packing
TrademarkZHENGXI
OriginZhejiang, China
HS Code8504401990

Working Principle

The TSGC2 Series Transformer operates as an adjustable autotransformer, utilizing a carbon brush system to regulate voltage output. The carbon brush rotates along the toroidal coil’s surface, adjusting the turns ratio between the primary and secondary coils. This enables seamless voltage control and stable power output, preventing fluctuations that may damage sensitive electrical equipment.

With a reinforced coil structure and spring-loaded brush system, the transformer provides smooth and precise voltage adjustments, making it a preferred choice for applications requiring reliable voltage regulation.

Key Features & Benefits

Adjustable Voltage Output – Supports a voltage range of 0-430V, offering flexibility for various applications.
High Efficiency & Low Loss – Ensures >90% efficiency, reducing power waste and heat generation.
Stable & Reliable PerformanceNo additional waveform distortion, ensuring clean and uninterrupted voltage supply.
Compact & Durable Design – Space-saving, lightweight, and built for long-term use.
Wide Range of Applications – Ideal for chemical, metallurgical, manufacturing, and household applications.
Certified & Compliant – Meets ISO9001 & CE safety standards for global usability.
CustomizableOEM/ODM options available to meet specific voltage and power requirements.

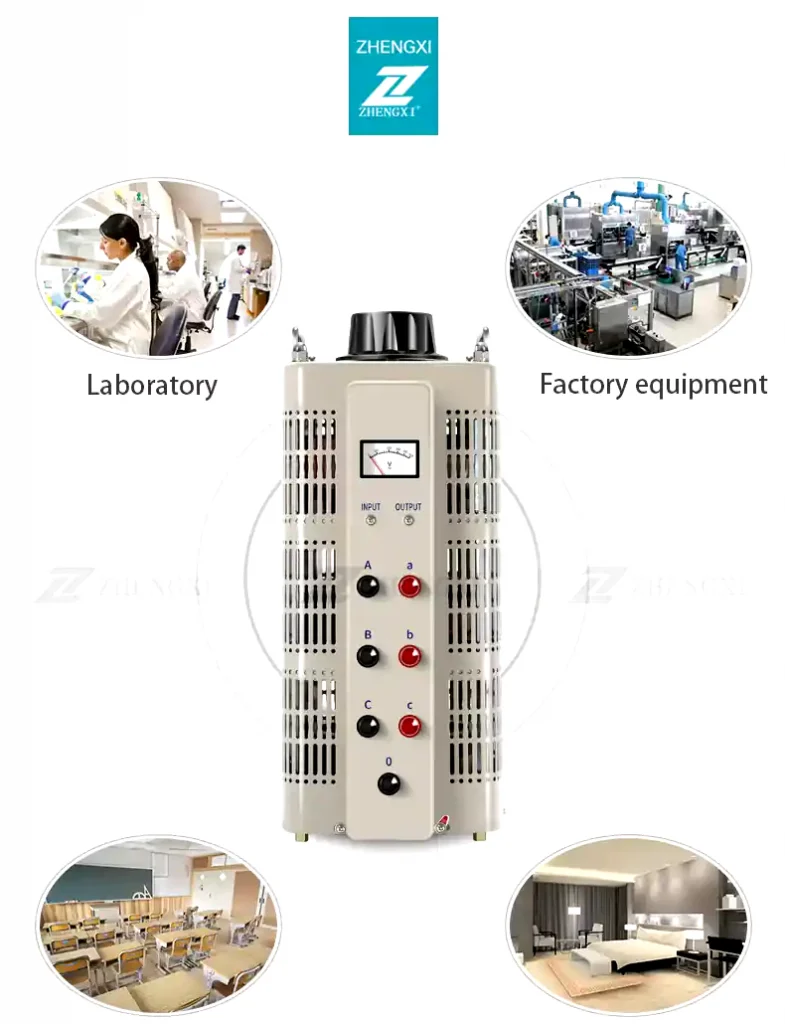

Application Scenarios

The TSGC2 Series Transformer is designed for diverse industrial and commercial applications, including:

? Industrial Manufacturing – Ensures voltage stability for precision machinery and CNC equipment.
⚙️ Metallurgy & Chemical Processing – Provides a regulated power supply for refining, electroplating, and chemical plants.
? Instrumentation & Testing – Offers precise voltage control for research labs and electrical testing equipment.
? Commercial Buildings & Public Utilities – Supports HVAC systems, lighting controls, and critical power applications.
? Household & Residential Use – Protects high-end appliances and home automation systems from voltage fluctuations.

FAQs (Frequently Asked Questions)

What are the payment terms?

We accept T/T, 30% deposit, and 70% balance before shipment.

What is the delivery time?

Usually 5-10 days, depending on the order quantity.

How is the product packaged?

We use export-standard packing, including carton boxes for small units and wooden crates for larger capacities.

Do you offer customization (OEM/ODM)?

Yes, we provide OEM/ODM services, allowing customers to customize voltage specifications, branding, and design.

Where do you export your products?

Our Voltage Regulator Transformers are exported to North America, South America, Europe, Southeast Asia, Africa, and the Middle East.

What certifications do you have?

We are ISO9001 & CE certified, ensuring compliance with international safety and quality standards.
