Voltage Regulator Transformer | 5kVA – 30kVA Autocoupling | Manual Adjustment AC 0-250V

Voltage Regulator Transformer | 5kVA – 30kVA Autocoupling | Manual Adjustment AC 0-250V

Model: TDGC2
pirce:$150.00
MOQ (Minimum Order Quantity): 1 set/piece
OEM and ODM Services: Available
Brand: PINEELE
Packaging: custodia in compensato
Payment Methods: T/T, L/C, Western Union, Carta di credito

Overview

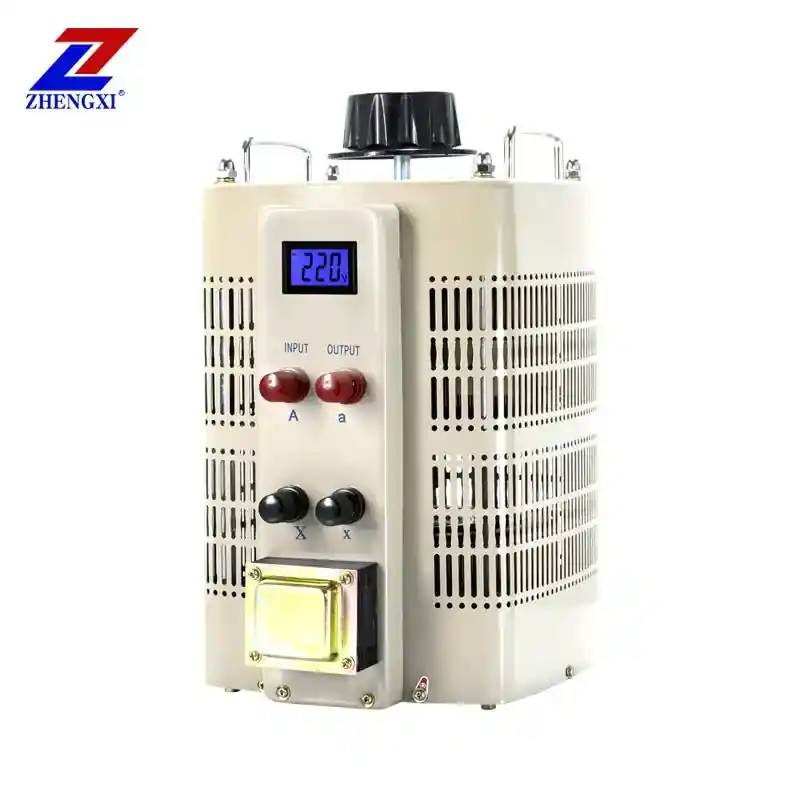

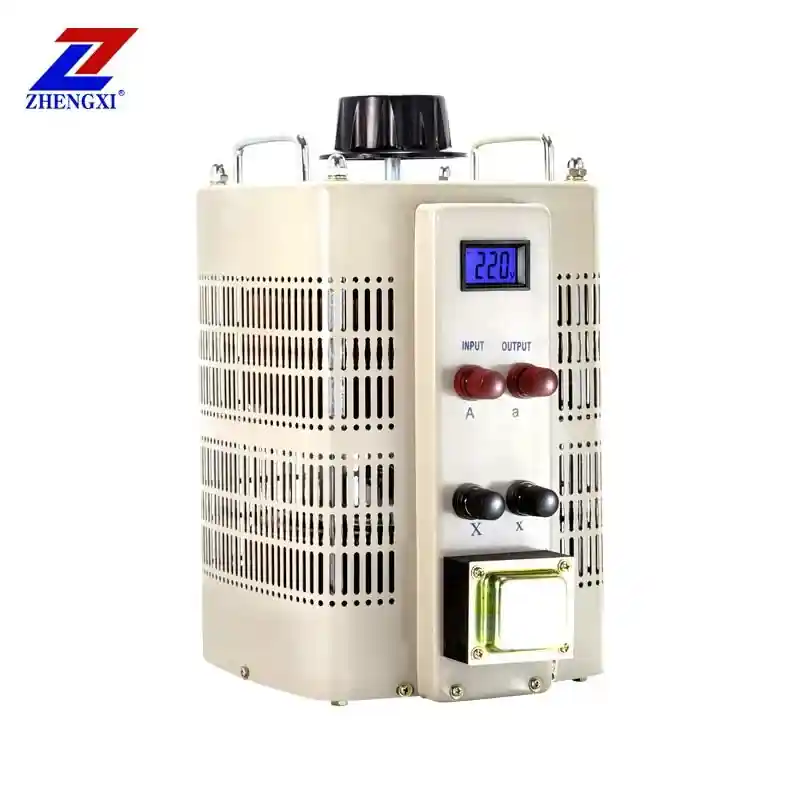

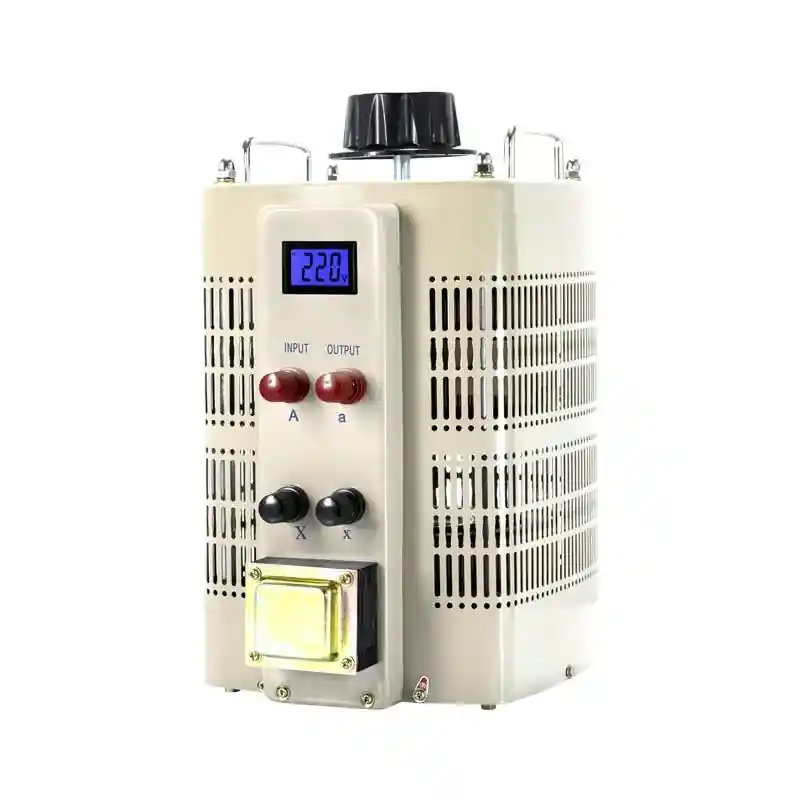

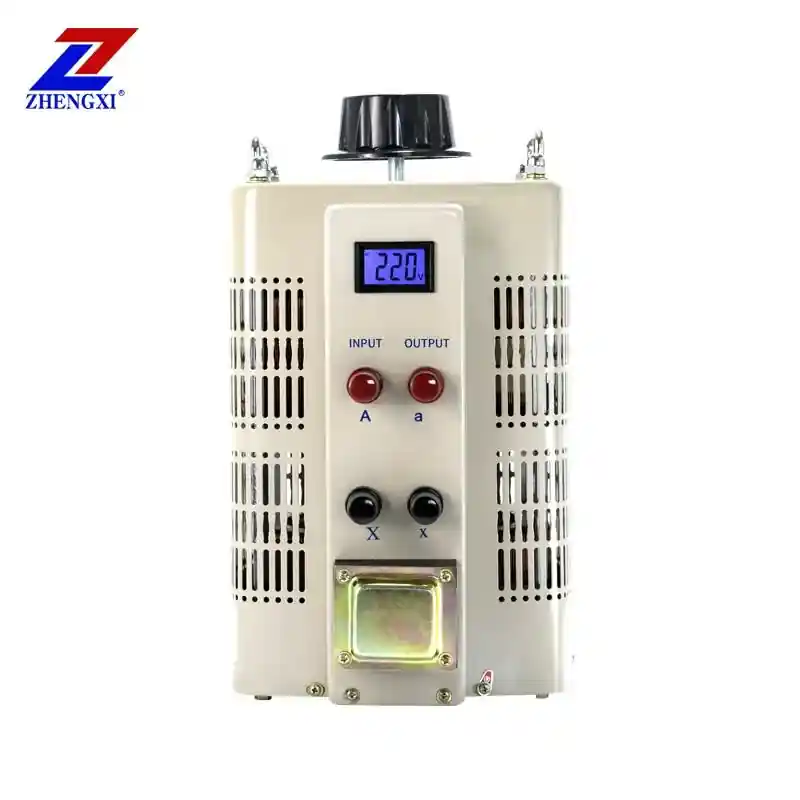

The PINEELE 5kVA – 30kVA Voltage Regulator Transformer is an autotransformer designed for smooth and continuous voltage adjustment. Using a manual adjustment mechanism, this transformer allows precise control of voltage output from 0V to 250V, making it ideal for industrial, scientific, and household applications requiring stable voltage regulation.

Equipped with a high-efficiency coil (>95%), this transformer ensures minimal energy loss and no waveform distortion. The rugged construction and high-quality brush contact system provide long-lasting reliability and stable operation for various applications, including temperature control, dimming, and power stabilization.

Certified with ISO9001 and CE, the PINEELE voltage regulator is built to meet global standards for safety and efficiency.

Key Features:

  • Adjustable Voltage Output: 0-250V (customizable to 300V) for precise voltage control.
  • High Efficiency: >95% efficiency, minimizing power loss.
  • Manual Adjustment Mechanism: Ensures smooth voltage regulation.
  • Autocoupling Transformer: Designed for continuous voltage adjustment.
  • Rugged Brush Contact System: Provides long-term durability and stable performance.
  • ISO9001 & CE Certified: Guaranteed quality and safety for various applications.
  • Compact and Lightweight: Space-saving shell-type core design.

Product Parameters

ModelTDGC2 Series
NameVoltage Regulator Transformer
Input Voltage110VAC/220VAC/230VAC/240VAC
Output Voltage0-250V (or customizable to 300V)
Working Frequency50Hz/60Hz
Efficiency>95%
Waveform DistortionNone
Electric Strength2000V/min
Insulation ResistanceSingle phase > 5MΩ, Three phase > 2MΩ
Cooling MethodNatural Cooling
CertificationISO9001, CE
Lead Time5-10 Days
InstallationIndoor Use Only
PackageExport Standard
Dimensions31X24X56cm
Weight48kg
BrandPINEELE
What is the function of a 5kVA – 30kVA transformer?

A 5kVA – 30kVA transformer is used for precise voltage regulation, allowing users to adjust and stabilize voltage levels in industrial, laboratory, and household applications. It is commonly used for temperature control, dimming, and power stabilization.

How efficient is the PINEELE voltage regulator transformer?

The PINEELE 5kVA – 30kVA transformer operates at an efficiency of >95%, ensuring minimal power loss and stable voltage output. The high-quality coil and contact brush system provide smooth voltage regulation without waveform distortion.

Can I customize the output voltage of this transformer?

Yes! The PINEELE voltage regulator can be customized to output 300V based on user requirements. Contact PINEELE support for custom orders and bulk inquiries.
