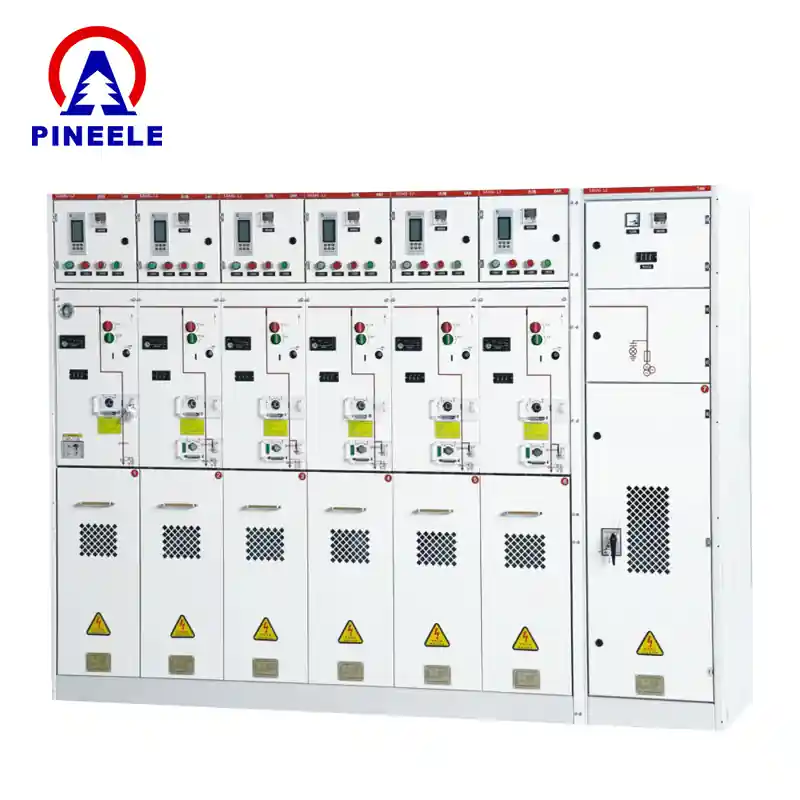

The SRM6-12 Gas-Insulated Switchgear, developed by PINEELE, represents a new generation of intelligent, sealed, and modular switchgear for medium-voltage applications. Designed with a fully insulated and inflatable structure, it has passed rigorous type tests conducted by the National High Voltage Electrical Testing Center.
This 12kV GIS unit is widely applied in 10kV and 6kV power distribution networks, especially in urban substations, commercial buildings, renewable energy grids, and industrial facilities. The SRM6-12 stands as a premium solution in modern energy systems, thanks to its modular construction, compact size, and minimal maintenance requirements.
Modular Architecture and Expandability
A core advantage of the SRM6-12 lies in its flexible modular design. PINEELE engineers have built the switchgear to support both fixed configurations and expandable busbar units. This allows power engineers and facility planners to scale systems as needed while maintaining a compact footprint.
The stainless steel, gas-filled compartments house all live components, eliminating the risk of contamination and extending equipment life. The unit’s modularity ensures easy adaptation to changing load demands and integration into existing smart grid frameworks.
Technical Features and Benefits
- Fully Sealed Gas Chamber: All live parts are enclosed within stainless steel chambers filled with SF6 gas, ensuring complete isolation from external environments.
- Enhanced Personnel Safety: The GIS design minimizes risks of arc flash, insulation failure, and electric shock.
- Zero Maintenance: The sealed mechanism eliminates the need for routine maintenance, reducing operating costs.
- Intelligent Control Options: Compatible with SCADA and TV-based automation systems for remote monitoring and diagnostics.
- Long-Term Reliability: Designed for 30+ years of service under standard indoor conditions (20°C).
- Compact Size: Ideal for installations where space is limited, such as underground substations or container-type power rooms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | SRM6-12 Gas-Insulated Switchgear |
| Rated Voltage | 12kV |
| Rated Frequency | 50Hz |
| Rated Current | 630A / 1250A |
| Short-time Withstand Current | 20kA / 3s |
| Peak Withstand Current | 50kA |
| Rated Short-Circuit Making Current | 50kA |
| Insulation Medium | SF6 Gas |
| Operating Mechanism | Manual / Electric |
| Protection Degree | IP67 |
| Installation Type | Indoor / Outdoor |
| Service Life | >30 years |
| Compliance Standard | GB / IEC |
| Busbar Design | Expandable / Fixed Modular |
Why Choose SRM6-12 Gas-Insulated Switchgear?
Choosing PINEELE’s SRM6-12 means investing in a smart and durable power distribution solution. This GIS unit provides a maintenance-free structure with high fault tolerance and insulation. The flexibility of modular expansion makes it a scalable investment for developing infrastructure or retrofitting old systems.
The switchgear supports automation, making it an ideal choice for smart grids and future-ready power distribution systems. Its resilience against harsh environments—such as dust, humidity, or salt spray—makes it suitable for coastal or industrial zones.
Application Scenarios
- Urban and suburban residential communities
- Industrial and commercial distribution stations
- Solar and wind power grid connections
- Infrastructure like metro, airports, tunnels
- Mining and construction sites
- Data centers and telecom power systems
- Rural electrification projects
Frequently Asked Questions (FAQ)
1. What is the key benefit of using the PINEELE SRM6-12 GIS?
The biggest advantage is the fully sealed and gas-insulated design, which eliminates maintenance, enhances electrical safety, and increases equipment longevity.
2. Can the SRM6-12 be integrated into a smart grid system?
Yes. The switchgear supports remote monitoring and automation via SCADA and TV-based systems, enabling intelligent operation and data logging.
3. Is it possible to expand the system later?
Absolutely. Its modular design with expandable busbars allows future upgrades without replacing the entire unit, supporting growing load demand and system flexibility.
A Future-Proof Power Distribution Solution
With energy infrastructure evolving rapidly, choosing the right switchgear is more critical than ever. The SRM6-12 Gas-Insulated Switchgear by PINEELE delivers performance, safety, and reliability in one intelligent package. Whether for smart grids, industrial plants, or public projects, this switchgear stands ready to power the future.
