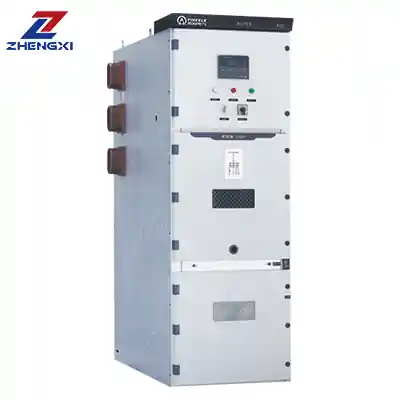

KYN28 6kV 12kV 630-3150A High Voltage Power Distribution Switchgear

KYN28 6kV 12kV 630-3150A High Voltage Power Distribution Switchgear

Model: KYN28
pirce:$10.00Custom Quote
MOQ (Minimum Order Quantity): 1 set/piece
OEM and ODM Services: Available
Brand: PINEELE
Packaging: custodia in compensato
Payment Methods: T/T, L/C, Western Union, Carta di credito

Overview

The PINEELE KYN28 6kV 12kV High Voltage Power Distribution Switchgear is a metal-enclosed, armored, removable switchgear designed for safe and reliable power distribution. It is widely used in industrial, commercial, and utility power systems to control, monitor, and protect electrical circuits.

This high-voltage switchgear is IEC and GB3906 certified, ensuring high performance, safety, and durability. It supports single busbar, single busbar sectionalized, or double busbar configurations, making it ideal for various high-voltage distribution applications.

Equipped with a protection class of IP4X, it provides excellent insulation and short-circuit withstand capabilities. The switchgear is compact, modular, and customizable, ensuring efficient integration into any power distribution network.

Key Features:

  • High Voltage Distribution: Suitable for 3.6-12kV three-phase AC 50Hz power grids.
  • Modular Design: Supports single busbar, sectionalized busbar, or double busbar systems.
  • Strong Protection: IP4X protection class ensures high safety standards.
  • Short-Circuit Withstand: Rated withstand current from 16-50kA, peak current up to 125kA.
  • Reliable Performance: Complies with IEC298, IEC694, and GB3906 international standards.
  • Heavy-Duty Construction: Weight range from 800-1200kg, ensuring stability and durability.
  • Customizable Configuration: Rated current options from 630A to 4000A.
High Voltage Power Distribution Switchgear

Product Parameters

ModelKYN28 Series
Voltage LevelHigh Voltage
InstallationRemovable
StructureCabinet
Current TypeAC
Rated Frequency50Hz / 60Hz
Rated Voltage12kV
Rated Current630A – 4000A
Rated Short-Time Withstand Current16-50kA
Rated Peak Withstand Current40-125kA
Main Busbar Rated Current1250A – 4000A
Branch Busbar Rated Current630A – 3150A
Protection ClassIP4X
Weight800-1200kg
Dimensions65015002200mm
CertificationIEC298, IEC694, GB3906
Transport PackageWooden Case
Production Capacity1000 units/month
BrandPINEELE
High Voltage Power Distribution Switchgear
