Autocoupling Three-Phase Dry Type Isolation Transformer Voltage Converter

Autocoupling Three-Phase Dry Type Isolation Transformer Voltage Converter

Model: QSG
pirce:$600.00
MOQ (Minimum Order Quantity): 1 set/piece
OEM and ODM Services: Available
Brand: PINEELE
Packaging: custodia in compensato
Payment Methods: T/T, L/C, Western Union, Carta di credito

Overview

The PINEELE Autocoupling Three-Phase Dry Type Isolation Transformer Voltage Converter is a high-efficiency power transformer designed for voltage step-up and step-down applications. It ensures reliable performance, minimal energy loss, and meets international safety standards such as ISO9001 and CE. With a vacuum-impregnated winding, it achieves Class F or H insulation, making it durable and efficient for industrial and commercial applications. This transformer is suitable for circuits operating at 50Hz to 60Hz with a voltage range of up to 2000V. Customizable solutions are available to meet specific user requirements.

Product Parameters

ParameterSpecification
Model NO.QSG
CoreShell-type Transformer
Cooling MethodDry-type Transformer
Winding TypeAuto-transformer
CertificationISO9001, CE
UsageSingle-phase Transformer, Power Transformer
Frequency50Hz/60Hz
Shape of CoreEI
BrandPINEELE
Warranty1 Year
Input Voltage480/440/415/380/220/200V
Rated Capacity0.5-2000kVA
TypeDry Type Transformer
Output Voltage480/440/415/380/220/200V (Customizable)
Voltage Accuracy±1%
Voltage Change Rate≤1.5%
Output Waveform DistortionNo distortion compared to the input waveform
Insulation ClassClass F, Class H; IP 00, IP30 etc.
Working Efficiency≥98%
Dielectric Strength3000VAC/1min
Connection MethodYyn0 DYn11 or Customizable
Overload CapabilityMore than 1.2 times the rated load for 4 hours
Sound Level≤50dB (within 1m)
Temperature Rise≤60°C
Insulation Resistance≥150MΩ
Operating EnvironmentTemperature: -20~+45°C, Humidity: ≤95% RH (non-condensing)
Installation ConditionsNon-corrosive gas and conductive dust
Standard ComplianceISO9001, CE, VDE0550, IEC439, GB226
Cooling MethodANAF

Product Features

  • High Efficiency: ≥98% energy efficiency ensures minimal power loss.
  • Voltage Stability: Ensures accurate output voltage with ±1% precision.
  • Durable Insulation: Class F or H insulation ensures longevity and safety.
  • Noise Reduction: Operates at ≤50dB, making it ideal for industrial and commercial applications.
  • Customizable Design: Available in different voltage configurations and protection classes.

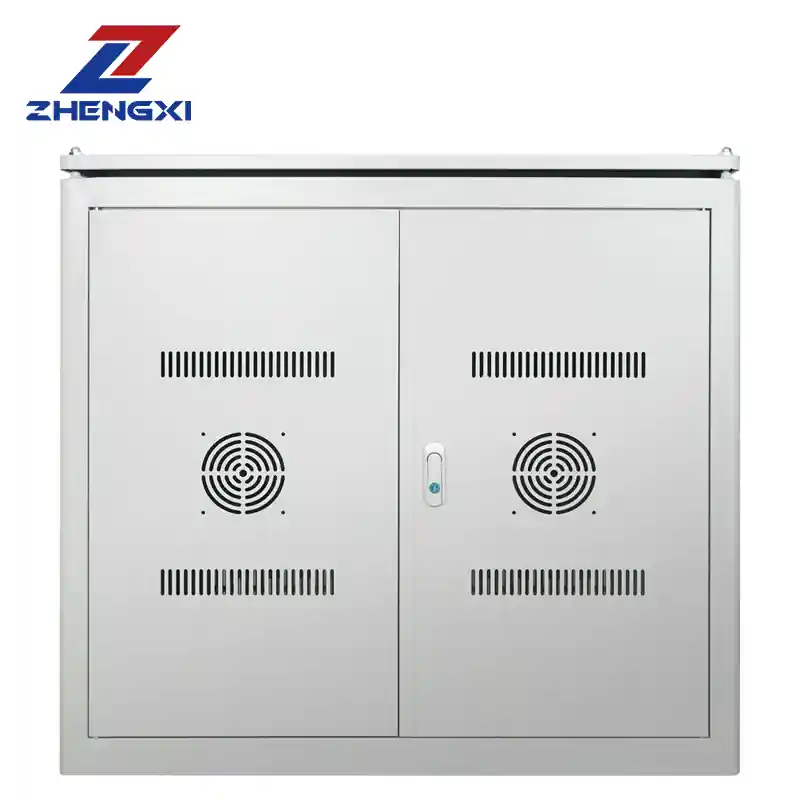

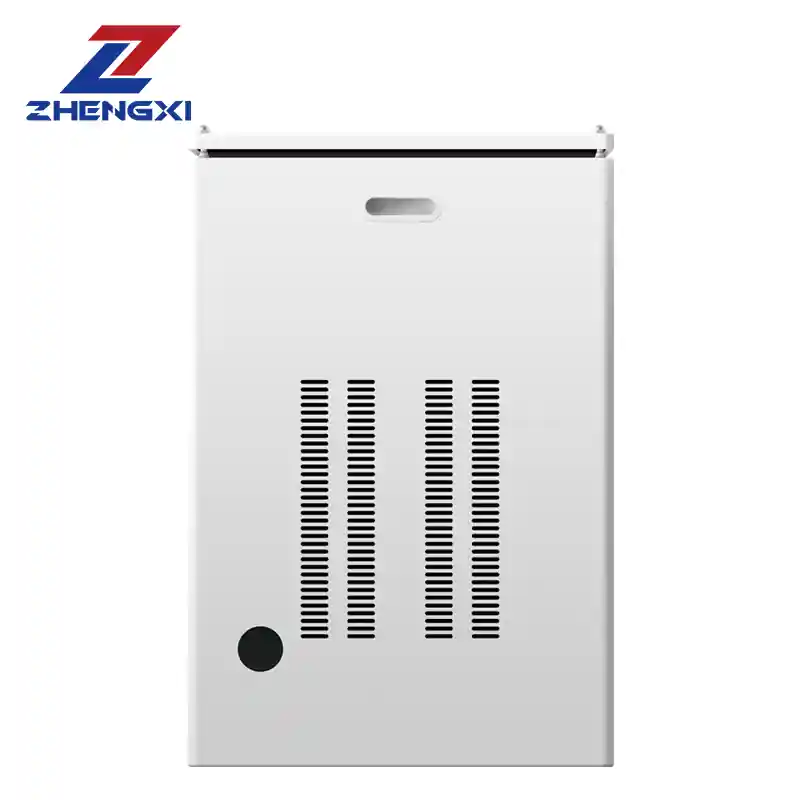

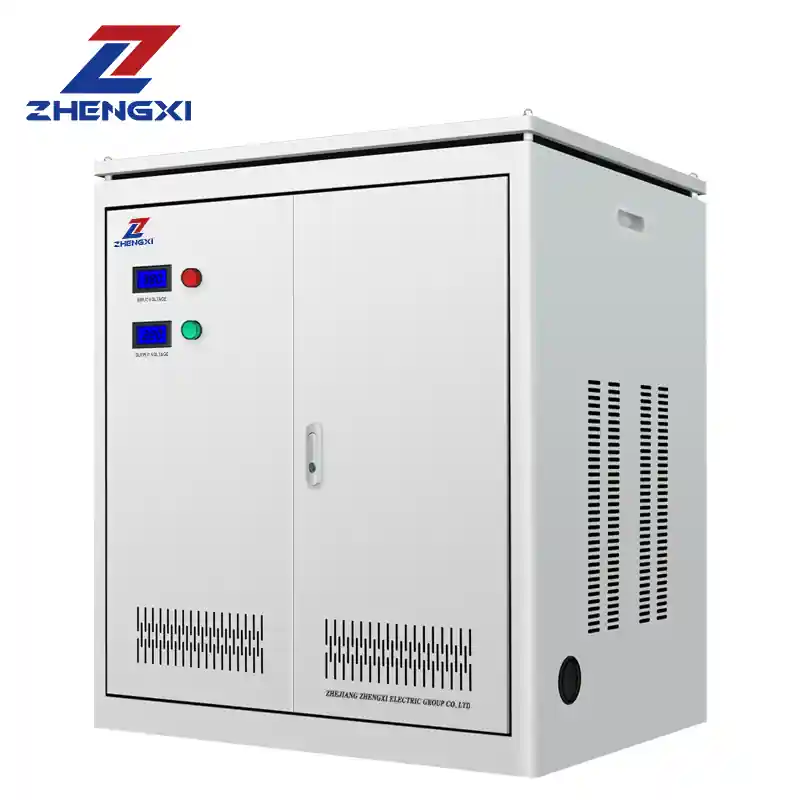

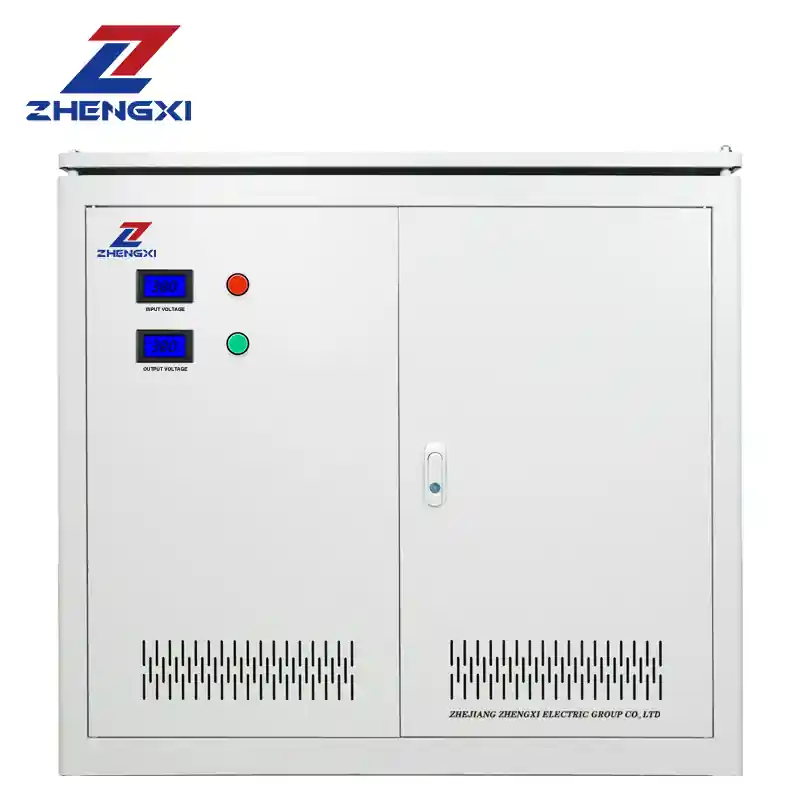

Product Images

Phase Dry Type Isolation Transformer
Phase Dry Type Isolation Transformer
Phase Dry Type Isolation Transformer
What is the main function of the PINEELE Autocoupling Three-Phase Dry Type Isolation Transformer?

This transformer is designed for voltage step-up and step-down conversion, making it ideal for industrial and commercial applications requiring stable and efficient power distribution.

How does the efficiency of this transformer compare to others?

With an efficiency rating of ≥98%, the PINEELE transformer minimizes energy loss, making it one of the most energy-efficient transformers in its class.

Can I customize the input and output voltage of the transformer?

Yes! The transformer supports customized voltage configurations, allowing users to specify the required input and output voltage based on their application needs.
