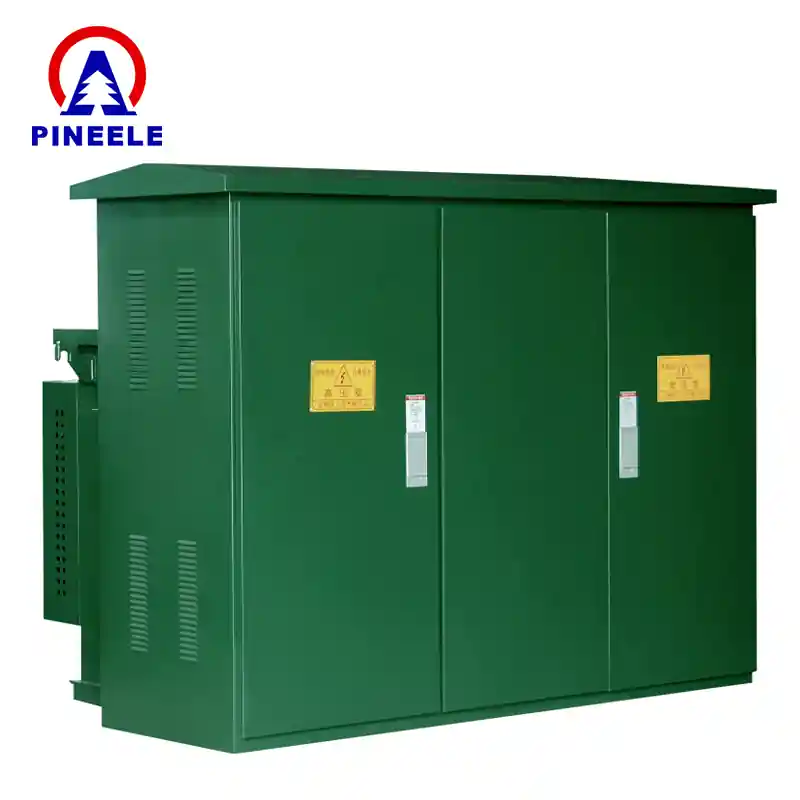

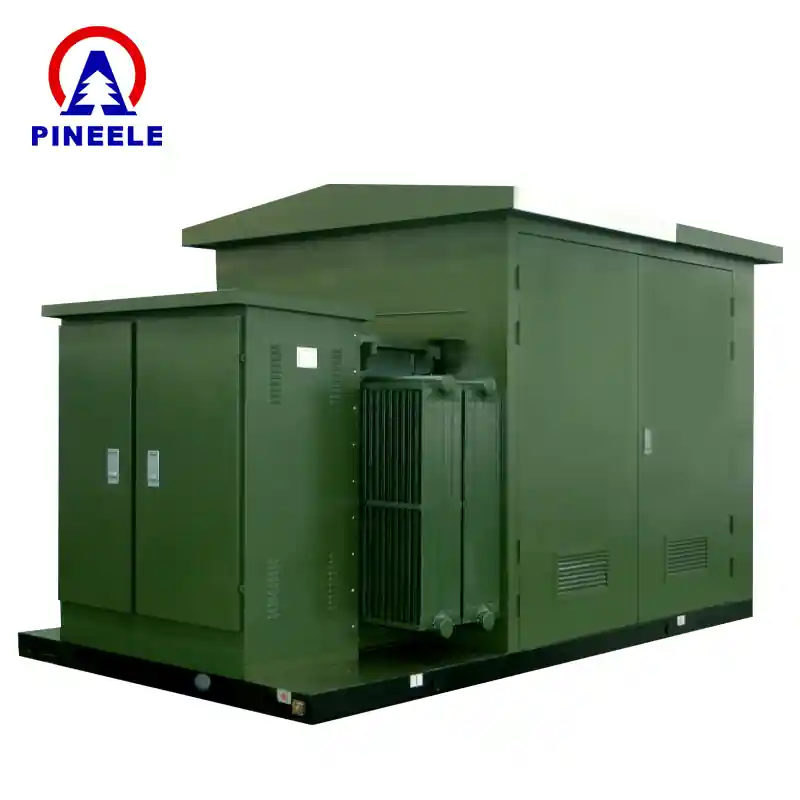

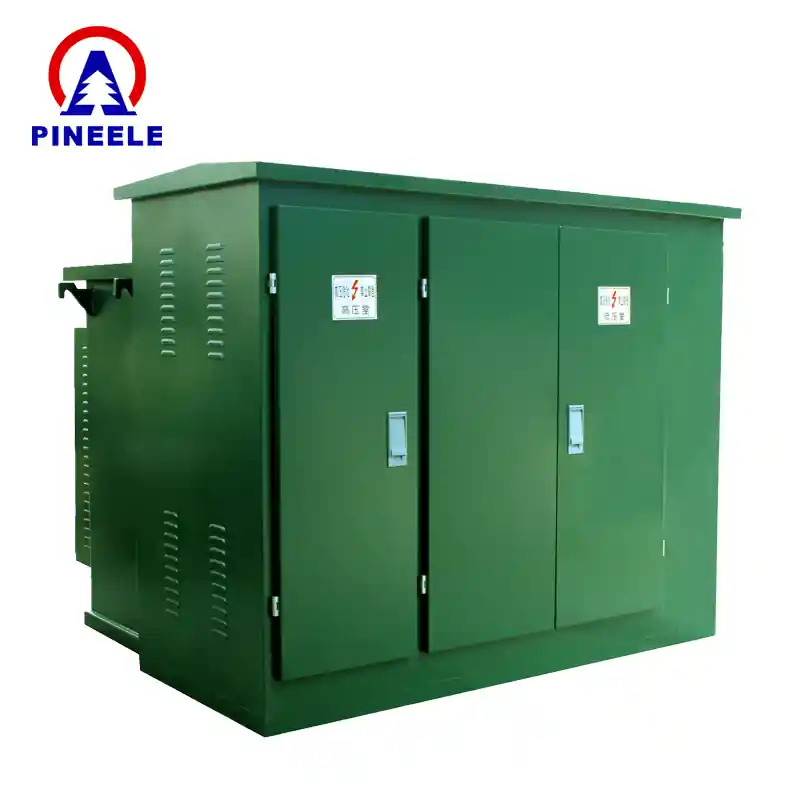

What is an American Style Compact Substation?
The American Style Compact Substation, commonly referred to as a pad-mounted transformer substation, is a state-of-the-art power distribution solution. This fully enclosed, space-saving unit integrates medium-voltage switchgear, a distribution transformer, and low-voltage switchgear into a single prefabricated system. Designed for efficiency and safety, the Compact Substation is perfect for urban settings, industrial facilities, commercial developments, and renewable energy initiatives.
Unlike traditional substations that demand large fenced areas and separate switchgear spaces, the compact substation is installed at ground level on a pad. Its tamper-proof, weather-resistant enclosure ensures dependable performance in diverse outdoor environments, making it a cost-effective alternative for modern power distribution.
Key Features of the Compact Substation
- Space-Saving & Simple Installation: The compact design reduces land use, ideal for crowded urban areas.
- Fully Enclosed & Secure: Durable metal enclosures safeguard against tampering and harsh weather.
- High Efficiency & Low Upkeep: Options for oil-immersed or dry-type transformers deliver reliable, low-maintenance operation.
- Customizable Options: Adjustable to various voltage levels, power capacities, and protection requirements.
- Global Standards Compliance: Adheres to IEEE C57.12.34, IEC 62271-202, and GB/T 17467-1998 standards for safety and quality.
Technical Specifications and Advantages of the Compact Substation
Technical Specifications of the Compact Substation
Manufactured by PINEELE, the American Style Compact Substation offers tailored solutions for diverse power needs. Below is a detailed table of its technical parameters:
| Parameter | Specification |
|---|---|
| Rated voltage | 10/0.4kV (HV/LV) |
| Maximum Working Voltage | 12kV (High Side Pressure) |
| Rated Current | 50-1600KVA |
| 1-Minute Frequency Withstand Voltage | 35kV |
| Lightning Impulse Voltage | 75kV |
| High-Voltage Backup Fuse Opening Current | 50kA |
| Insertion Fuse Opening Current | 2.5kA |
| Cooling Mode | Oil Immersion Self-Cooling |
| Protection Class | IP43 |
| Noise Level | ≤50dB |
| Environmental Temperature | -35°C ~ +40°C |
Why Choose PINEELE’s Compact Substation?
PINEELE’s American Style Compact Substation stands out for its quality, durability, and performance:
- Premium Components: Built with parts from trusted brands like ABB, Schneider, Siemens, Chint, and Omron.
- Fully Customizable: Enclosure options include stainless steel, aluminum alloy, cold-rolled steel, or eco-friendly materials.
- Certified Excellence: Meets ISO9001, DAS Certification, and CE Compliance standards.
Image Placeholder
Common Applications of the Compact Substation
The American Style Compact Substation serves a wide range of industries and environments:
- Urban Power Distribution: Supports residential areas, commercial complexes, and industrial parks.
- Renewable Energy Projects: Powers solar farms and wind energy stations efficiently.
- Construction & Mining Sites: Provides reliable power in temporary or remote locations.
- Transportation Hubs: Ensures stable electricity for airports and railway stations.
- Oil Fields & Terminals: Operates effectively in challenging petrochemical settings.
Frequently Asked Questions
- What is the lifespan of an American Style Compact Substation?
With proper maintenance, these substations last 25-30 years, thanks to their sealed, weather-resistant construction. - How does it differ from a European-style substation?
The American Style Compact Substation is pad-mounted and fully enclosed for ground-level use, while European models often feature modular designs with separate compartments. - Can PINEELE customize the Compact Substation?
Yes, PINEELE offers tailored solutions, adjusting voltage, capacity, protection, and enclosure materials to meet specific project needs.
The American Style Compact Substation from PINEELE is a forward-thinking choice for efficient, reliable power distribution. Its compact footprint, high performance, and robust safety features make it an excellent fit for urban, industrial, and renewable energy applications.
