AC Three-Phase Automatic Voltage Regulator Stabilizer with Thyristor Control

AC Three-Phase Automatic Voltage Regulator Stabilizer with Thyristor Control

Model: ZBW-10KVA
pirce:$999.00
MOQ (Minimum Order Quantity): 1 set/piece
OEM and ODM Services: Available
Brand: PINEELE
Packaging: custodia in compensato
Payment Methods: T/T, L/C, Western Union, Carta di credito

Overview

The PINEELE AC Three-Phase Automatic Non-Contact Voltage Regulator Stabilizer Thyristor Cabinet Type is a next-generation, high-precision voltage stabilizer designed for industrial and commercial applications. This stabilizer ensures fast voltage regulation, intelligent control, and energy efficiency. Unlike traditional compensation regulators, this model utilizes a thyristor-based non-contact switching system, eliminating carbon brushes and mechanical transmission. It features a microcontroller-based digital control system with high-speed AD sampling and multi-language LCD display for real-time monitoring. With its ability to provide stable voltage, this regulator enhances equipment safety and prolongs operational lifespan.

Product Parameters

ParameterSpecification
Model NO.ZBW-10KVA
Frequency CharacteristicsLow Frequency
UsageSVC
Frequency50~60Hz
SizeMedium
Iron Core ShapeRing
Power SourceSwitching Regulated Power Supply
Application Range50~60Hz
BrandPINEELE
Input Voltage304V-456V
Efficiency97%
Output Voltage380V ±3% or Customizable
TypeRelay Control
PhaseThree Phase
Capacity10kVA
CertificateCE/ISO9001
Over Voltage ProtectionYes
Over Load ProtectionYes
High Temperature ProtectionOptional
Under Voltage ProtectionOptional
Transport PackageExport Standard Packing
Cooling MethodAir Cooling

Product Features

  • Non-Contact Technology: Uses thyristor-based switching to eliminate mechanical wear.
  • High Precision Voltage Regulation: Maintains voltage accuracy of ±(1-7)%.
  • Fast Response Time: <10ms voltage correction.
  • Energy Efficient: Efficiency up to 97% for models 50KVA and below, and 99% for larger models.
  • User-Friendly Interface: Multi-language LCD display and real-time monitoring.
  • Protective Functions: Includes overvoltage, undervoltage, overload, and optional high-temperature protection.

Product Images

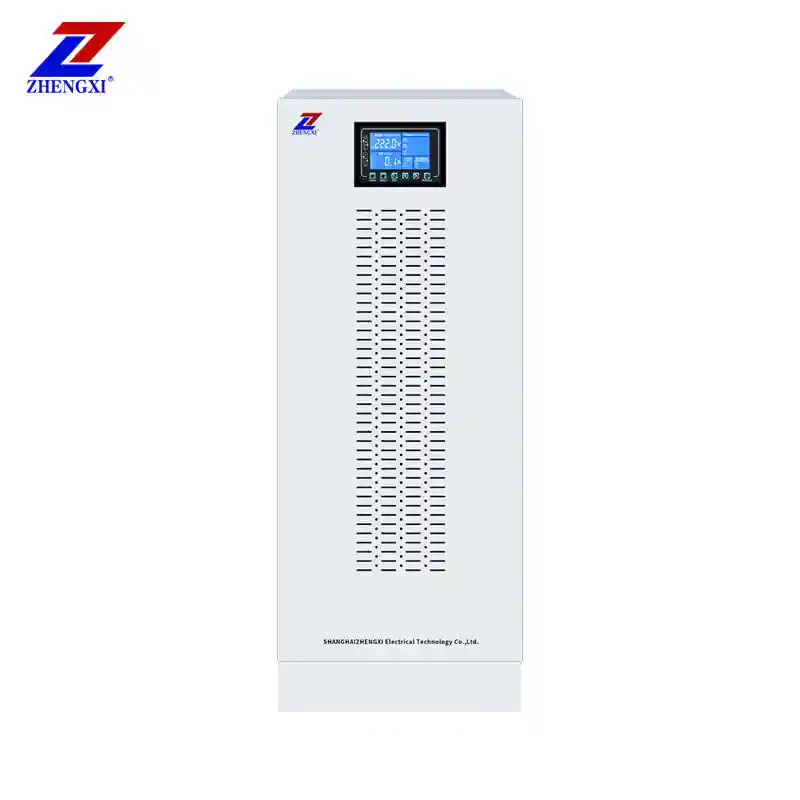

Voltage Regulator Stabilizer

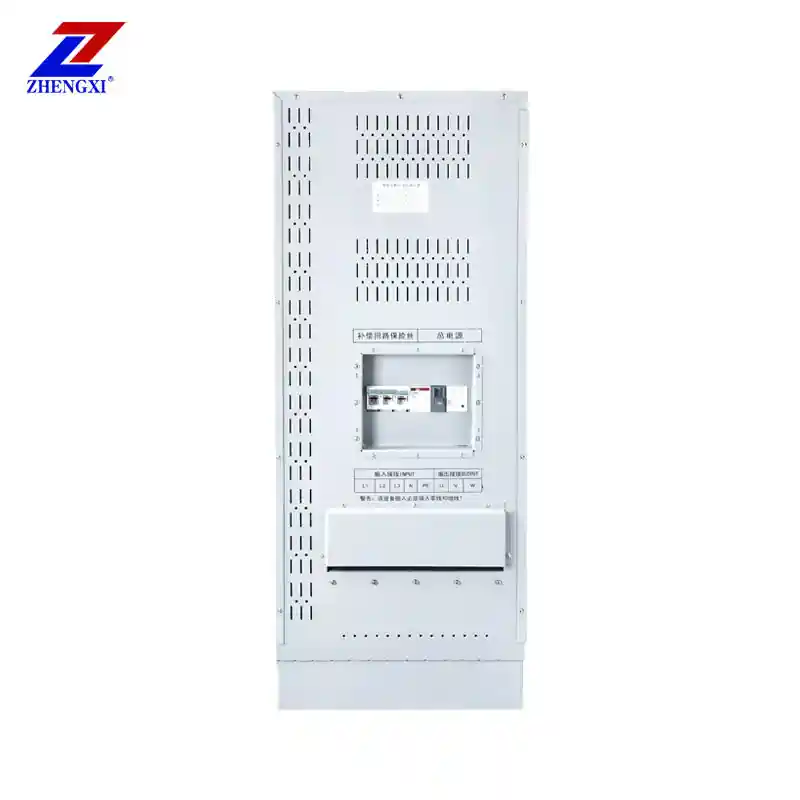

Voltage Regulator Stabilizer

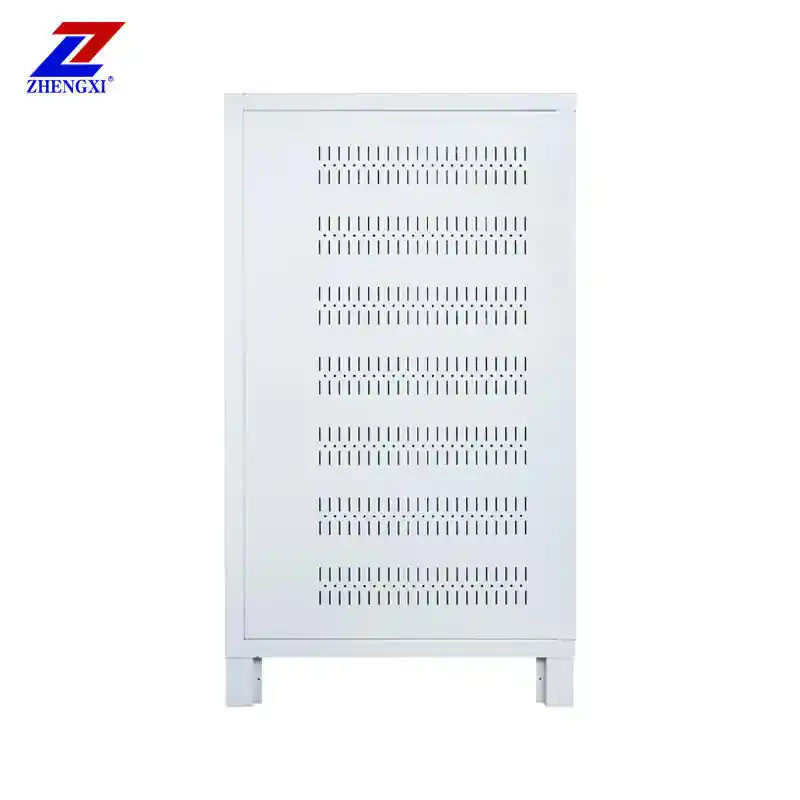

Voltage Regulator Stabilizer

Technical Specifications

ModelRated Capacity (KVA)Rated Current (A)Dimensions (mm)
ZBW-S-10KVA1015390×650×860 (with wheels)
ZBW-S-20KVA2030390×650×860 (with wheels)
ZBW-S-30KVA3046390×650×860 (with wheels)
ZBW-S-40KVA4061390×650×860 (with wheels)
ZBW-S-50KVA5076390×650×860 (with wheels)
ZBW-S-60KVA6091390×650×860 (with wheels)
ZBW-S-80KVA80121460×650×1200
ZBW-S-100KVA100152460×650×1200
ZBW-S-120KVA120182460×650×1200
ZBW-S-150KVA150228760×660×1660
ZBW-S-200KVA200300760×660×1660
ZBW-S-225KVA225342760×660×1660
ZBW-S-250KVA2503801100×800×2000
ZBW-S-300KVA3004501100×800×2000
ZBW-S-400KVA4006081100×800×2000
ZBW-S-500KVA5007601100×800×2000
ZBW-S-600KVA6009121100×800×2000
What are the advantages of the PINEELE AC Three-Phase Automatic Voltage Regulator over traditional voltage stabilizers?

Unlike traditional stabilizers that use mechanical components, this model uses thyristor-based non-contact technology, offering faster response times (<10ms), higher efficiency (up to 99%), and longer lifespan due to the elimination of moving parts.

How does this voltage regulator improve power stability?

The PINEELE stabilizer features real-time digital processing and 12-bit high-speed AD sampling, ensuring stable voltage with an accuracy of ±(1-7)%, preventing fluctuations that can damage sensitive equipment.

Is this voltage regulator suitable for industrial applications?

Yes! The PINEELE AC Three-Phase Voltage Regulator is designed for heavy-duty industrial use, capable of handling large loads up to 600KVA, making it ideal for factories, data centers, medical equipment, and other critical applications.
